Commercial H/ERV · Passive House Certified
Ventum+ High Efficiency Modular H/ERV
A fully modular dedicated outside air system built for large commercial projects. Stacked counterflow core. Up to 15,000 CFM. Configurable for any application.
Modular System
Built for your project, not the other way around.

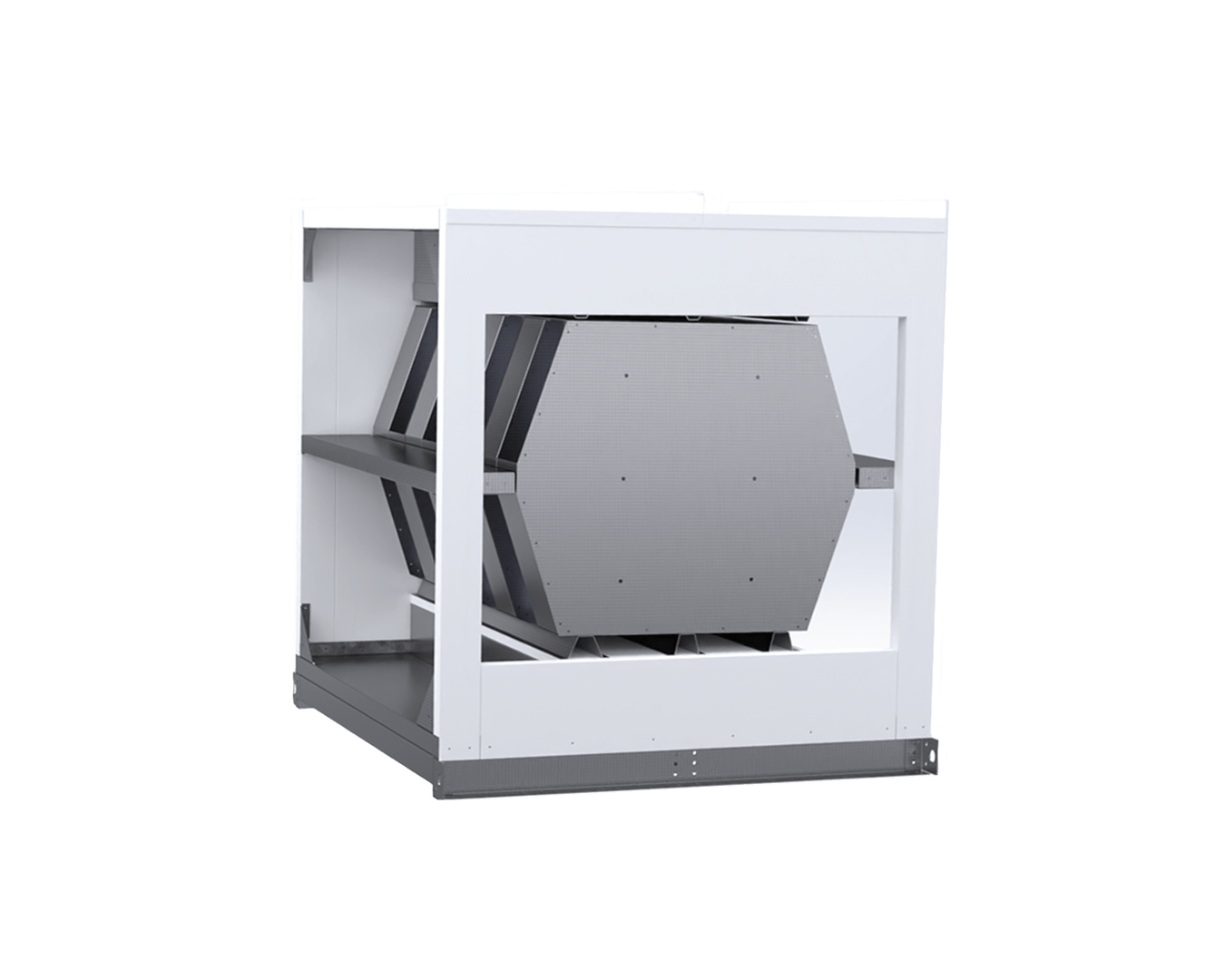

Core Module
Stacked counterflow HRV or ERV cores. A stainless steel drain pan is included for HRV options.
Fan & Filter Module
Factory-integrated DDC controls are packaged into the upper filter sections, and ECM fans are mounted below. There are two fan/filter modules per unit. Hoods are only included on the outdoor EA/OA module
Hydronic Conditioning Module
Hydronic chilled water coil and optional hot water reheat coil are packaged in a single module with cabinet space where hydronic valves can be mounted in the field.
Daikin VRV Module
The heating and cooling coil section is available in DX, Hot Gas Reheat. Integrated VRV controllers and valve kits are factory wired and powered by the unit. See next page for more details on module and integration.
Hydronic Heating Module
Hydronic pre-heat and post-heat module.
Electric Heating Module
Electric pre-heat and postheat module.
Downshot Module
Supply and/or return air streams available through field-supplied roof curb.
Recirculation Module
Mixing box module with modulating Return Air damper(s). Return Air filter module is equipped with an Airflow Station for self-balancing mixed air ventilation options. Outdoor Air damper also modulates for mixed air balancing.
Why Ventum+
Engineered for performance at scale.
Every feature is purpose-built for commercial projects where efficiency, flexibility, and controls integration aren’t optional.
Stacked Counterflow Core
No moving parts, no cross-contamination. Up to 80% sensible and 70% latent recovery with our highest-efficiency core design available.
Indoor and Outdoor Options
Factory-mounted shut-off dampers are standard for outdoor applications. Roof curb or floor-mount ready with weatherproof casing.
Passive House Certified
Specify with confience on your next Passive House or high-performance building project.
Integrated Controls by Distech
Factory-installed and programmed Distech ECLYPSE controller for standalone or BMS-connected operation. Full BACnet/IP and Modbus support.
Resources
Everything you need to specify.
Download product literature, comparison guides, and technical documentation.
Ventum+ Brochure
Full product overview, configurations, and application guide for specifiers.
Commercial Comparison
Side-by-side spec comparison across the full Oxygen8 commercial product line.
Passive House Brochure
Certification details, efficiency data, and compliance documentation for Passive House projects.
Core FAQ
Common questions about Oxygen8’s high-efficiency energy recovery cores, installation, and maintenance.
Energy Savings Estimator
See the potential energy and cost savings from upgrading to a Ventum+ H/ERV on your project.
